Friday, 13 December 2013

Day 209

I got the ute legal and now to fill in the gaps in the blog
I made a battery box
and fitted the batteries,relays and fuse

put the cables in a shielding tube
under the ute to the engine bay

Saturday, 24 August 2013

day 111

oh my I am going so slow
I am doing it on saturday mornings.

As you can see with a little help from mark (co-worker) the front mount has been made and I made a shelf for the controller and vacuum pump (if you notice the vacuum reserve is a fire extinguisher )

I put in the main battery cables to the deck I looked at the tool box for weeks to see if I could fit all the parts and batteries in it and gave up trying to fit it all in it was 200 mm to small so I am going to make a wooden tool box to put all in ( batteries,contactors,fuse and dc (150v)to dc (12v) converter.)
Tested the water pump and had a bad day ( put the power in the wroung way and cooked the circuit    board ) so I needed to get a new pump to cool the controller,
A fellow ev builder said that toyota prius cars have a 12v pump on them so I looked in to that and got a surprise to get a new pump for a $109 sweet,the hose fittings on it was 16mm and the controller hose I had put on was3/8( about 10mm) so I put a reduser in the line after the pump and tested it without the controller hooked up (just in case it put out to much pressure ) all whent well so I am going to use it,
Put the vaccum pump through its paces and it fell flat (it took 30 seconds to recover for just one pump on the foot brake) now to get a replacement , did some trading and got a better pump (it only takes 3 seconds to recover now )

I have spent a few days thinking and planing
And then I put in the relays to run the two pumps and the contactors (in the battery box ) and a fuse box for all the new wiring

Saturday, 15 June 2013

Day 40

As you can see it has been a while since my last chat so here is whats been done so far,
I got over to the engineers to chat about the bill, they came to the party and reduced the clutch and engine mount to less than I was expecting so the bill is bearable and a big thanks to them.
My work mate finished the frount motor mount today so I will bolt it in on monday and then I will post some pictures.

After a chat with my work mates I am putting in a shelf across the engine bay to mount the controller and vacuum pump and tank (as for the vacuum tank its an old fire extinguisher ) it was also mentioned that I should rubber mount it to allow the gards to move other wise they may crack.

After a bit of thinking I am going to cut a hole in the back of the battery box slightly bigger than the battery so I can put the last set in the box the whole will also there to let the main power cable out also.
I am looking into flexable sheath for the main cable as I am required to have the main high voltage in orange sheath and the price is the same( almost I have to buy 50 meters of flex for the same price as the solid and corners I may end up with 20 meters left over)

Tuesday, 4 June 2013

Day 29

I have got the motor and gear box adaptor made (a sore point at the moment as I have 30mm more than I should have if you notice there is a bearing in the middle of the flywheel mount I asked them to bush the centure of the motor sharft as it was made to take the gearbox sharft tip

and a bill way to large I am cooling down before I talk to them
my suggestion if you are going to get work done make sure you give it to them as a drawing and get a price before they start)

and I got the engineer to trim the flywheel they took the ring gear ( the starter motor uses it to turn the old motor) and some of the back to lighten it ( thats why its shiny ) got it balanced
and then on saturday I put them together with the clutch then put it in now to make the front mount and controller mount

Saturday, 25 May 2013

Day 19

"The pump is ordered for cooling the controller, I will need to remove the heater core in the ute as it leaks. The plan so far is to pump the water/coolant though the air con radiator at the front of the ute though the controller to the heater core (inside the ute) and then back to the pump ( I may put a 100 watt water heater in the line for a bit more heat if needed )
(edit: I was told that I will need two pumps and circuits as the heater will need 80 c to warm the ute so that half will be done later )

Friday, 24 May 2013

Day 17

So far I got the welding done but I still have to sand and paint the chassis in places( the dirt was on the metal for a long time and that meant the dirt kept the moister on the metal giving the rust somewhere to start) I have made the decision to remove the power steering pump and later I will replace it with manual steering.

As for the vacuum for the brakes I will use the alternator/vacuum pump with a oil feed to the pump to keep it lubricated (as the oil goes out of the pump it will go into a container with a small amount of pressure to push it out to the pump again )and because I am connecting the belt to drive the alternator/vacuum pump I may as well use the alternator to charge the 12v battery.

The pump is ordered for cooling the controller, I will need to remove the heater core in the ute as it leaks. The plan so far is to pump the water/coolant though the air con radiator at the front of the ute though the controller to the heater core (inside the ute) and then back to the pump ( I may put a 100 watt water heater in the line for a bit more heat if needed )

I will put the controller in the ute this week and I will get the motor and gearbox back this week to so it will be a full on week
The rules say that I must be able to kill the power between the motor and the controller if any thing goes wrong so I have arranged for a emergency disconnect (not that I will use it because when the key is turned off the relays will kill the high voltage and then there is the foot on the clutch and take it out of gear) in the form of two Anderson 350 amp connectors with four 95mm2 cables (2 + and 2 -) all I need to do is find where to put the pull cord.
After a lot of thinking ( which will be my downfall )I am a little closer to how the batteries are to restrained I have always been going to strap them in groups but that's not the problem its when they are all in the tool box how do you hold them down without using steel ( and risk shorting out to the tool box) the answer is to put ply wood or thick plastic on top of the sets and then clamp that down with tie-down or something

Saturday, 18 May 2013

Day 10

Day off today
I am going to use this tool box for the batteries 8 rows of 6 batteries each set of 6 will be strapped together and then they all will be held down ( just how is a mystery as there is live wires in there so steel marginal ) I am going to put the wires out the back and as I need to have a disconnect for certification ( I need two splits to have 3 packs of 60v or less )I am going to use two Anderson connectors as seen on diy ev it will come off the battery thru the connector loop around back thru the connector onto the next battery so if I pull the loop it will kill the power as it pulls the connector apart.

Friday, 17 May 2013

Day 9

I took the fuel tank and lines off today,cleaned out the dirt in hard to reach places and did a really good steam clean so it look good now,I found a couple of rust holes to fix ( 30 min work) so I will do that on Monday.
this is a spanner with 800amps@3.2 volts
(from a youtube clip)

I am putting in 47x 3.2v=150 v
I must be very careful and NOT drop the spanner!

Day 8

I got the electric motor,gearbox,and (after a decision at work) the clutch with the flywheel to the engineers to get them put together.
I did little in the way of removing stuff today I still have the fuel tank and hose to take off,the grill will come off so I can get at the air con hoses ( I have been blessed with the entry and exit being at the top and bottom of the air con radiator so that will become part of the controllers water cooling system)
Tomorrow I will take my 12v vacuum pump to see if it works well in the ute, other wise I will need to use the utes belt driven vacuum pump more mounting and pulleys to drain the power of the motor.
as for power steering I may use one off a toyota prius or mr2 as they are electrically driven ( if not put a pully on a 12v motor and drive it and a vacuum pump together)

Thursday, 16 May 2013

Day 7

Undone the drive shaft this morning ,at lunch time I took out the last bolts and lifted the motor and gearbox out, another 6 bolts and the gearbox was off the motor, only to show an almost new clutch, now the decision to go clutch less is going to be a lot harder I think i will get a quote for the adapter plate, with or with out the clutch to see how much extra cost is involved.
The Ute needs a really good clean so all going to plan on Saturday I will put the Ute outside and lift it up as high as the jacks will go put the axle stands under so I can steam clean every thing !

Wednesday, 15 May 2013

Day 6

Took the wiring off the motor and as it is a column change I needed to remove all of the linkages so they would not get broken when the motor comes out, I drained the gear box and was happy to see clean oil in it (the sump plug has a magnet in it to collect any bits of  lose metal in the gearbox and that was not clean but what was there was small and due to normal wear )
Sweet wants to drive the ute so I may have to leave the clutch in but i have a few days to decide if I want to have the extra weight and cost for her to change gear when she could use just put it in third and drive.

Tuesday, 14 May 2013

Day 5

I took out the radiator today, removed the fan and exhaust also drained the diesel tank ,managed to get the power steering pump off it was being difficult and then I had to hurriedly eat my lunch and go back to work.
I am going to remove the air con,I will use the air con radiator to cool the controller and I noticed that the heater has been disconnected which makes me think it has been leaking so I will need to check it out as I had planed to use it ,
mined you if i just use the heater coils to cool the water for the controller  I can buy a 12v  hair dryer from aus for $100 nzd then again that is spending money I don't have spare.

Monday, 13 May 2013

Day 4

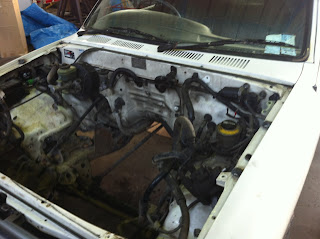

Gave the Ute a steam clean this morning, put the Ute inside and started to disassemble, time available was limited so I took off the bonnet, air cleaner and drained the radiator.
I am in two minds as to whether I keep the air con, if I do it will need to be driven of the drive motor and i am not keen on doing that .
being a diesel the brakes vacuum comes from a vacuum pump mounted on the back of alternator now do I keep it and use the vacuum and the alternator or do I use the 12 v vac pump I have already have for the bedford, I know one thing I will need to keep the heater its to cold to not have one.

Sunday, 12 May 2013

Day 3

The ute
other than needing a clean and a 30 min rust job it is in good condition
 a good steamclean/pressure wash tomorrow and then start on the engine removal

Friday, 10 May 2013

Day 2

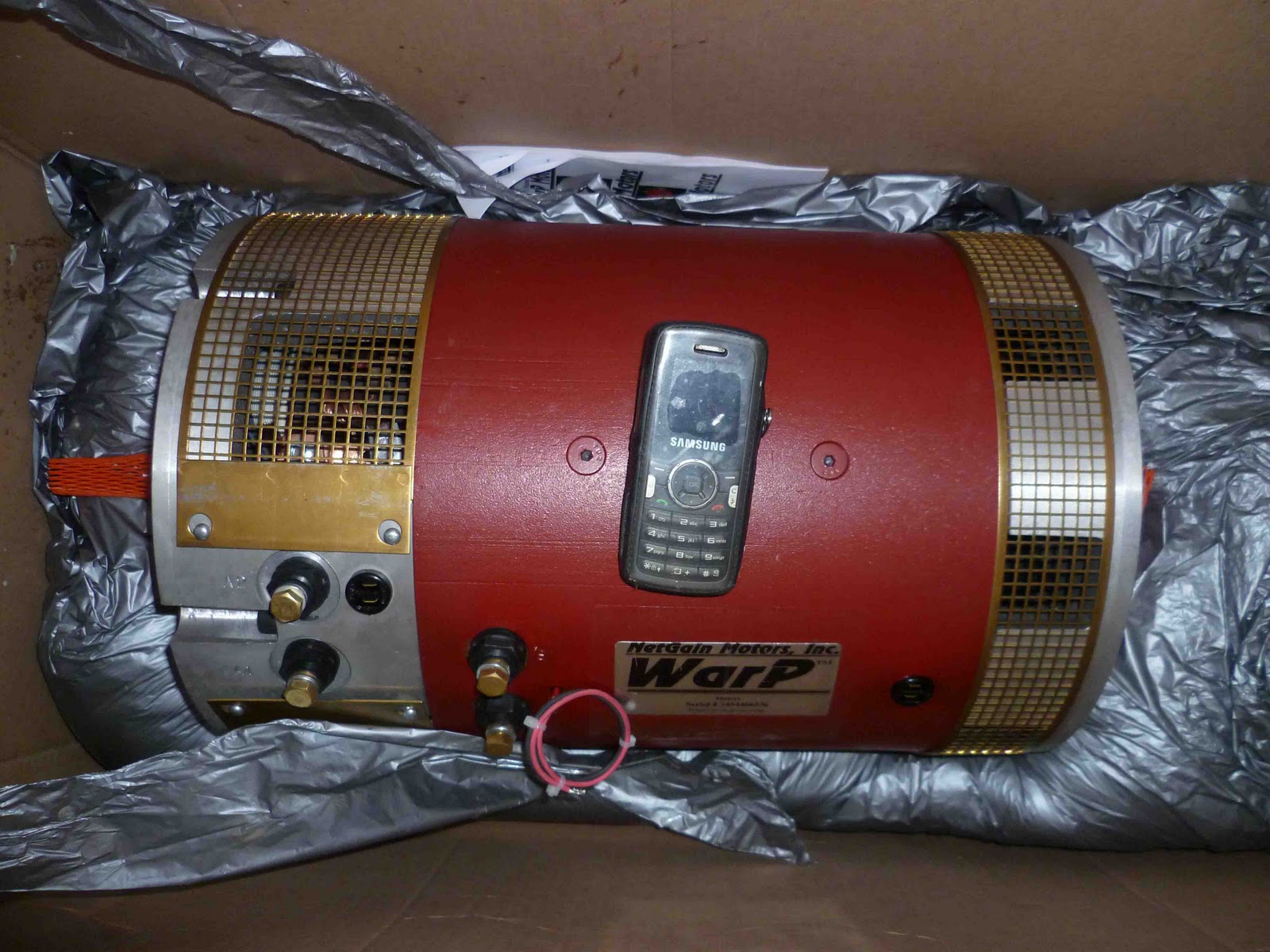

warp 11 (11 inch diameter ) the specs where good 135lb of torque at 72v with a price to make your hair curl and i have had it for to long I think i paid about $4000
I could have gone smaller but I had bought it for a 2140 kg J1 bedford so it is going to be over kill in the ute .
Please keep in mind that I have gone to the extreme as I have made it to take anything i can put it thru I have a friend who has made the whole car (Subaru running gear),kitset controller ,batteries and a second hand 11 inch fork lift motor for under $10,000 nzd

the warp 11 can handle a max of 170vdc and about 500 amp for 5min ( I am still looking into what is the max amps it can handle )
As for the mounting i am going without the clutch as i don't need it ( petrol and diesel car motors don't stop when the car stops electric motors do)

Day 1

after a few years of research I have begun to build an electric vehicle and after two years(saturday mornings ) of rust removal I am still no closer to starting so the decision was made to get a ute for now and carry on doing the rust on the J 1 Bedford. so here we go!

the batteries
I had taken a long time to get them because I wanted to get a firm "Yes" in my head
the choose was lead acid deep cycle batteries
24 x 6v (220ah) batteries with a 2 year life high internal resistance (as the power goes through each battery some power is lost as heat so i will lose some of the capacity with lead acid it about 50% )
and to top it off they weigh 720kg
so 24x6v= 144v(220ah/2=110ah) 144x110=15.84kWh  $6000 nzd every 2 years
lithium 47x3.2v(90ah Only went this low to lower the cost)=150v lithium has a very low internal resistance (good)
it also has less weight only 141kg
so 47x3.2v=150x90=13.5kWh  $8500 with a 10 to 12 year life and the are 579 kgs lighter !
